Inside This Tundra Rear-Window Replacement
This 2012 Toyota Tundra’s power sliding rear window replacement involved accessing the mechanism behind the rear interior panel, removing broken glass, and aligning the replacement glass with the regulator.
The job photos below show the panel access, electrical connections, glass cleanup, and adjustment process. Once installed, the window was operated repeatedly to check its movement, alignment, and closing position.

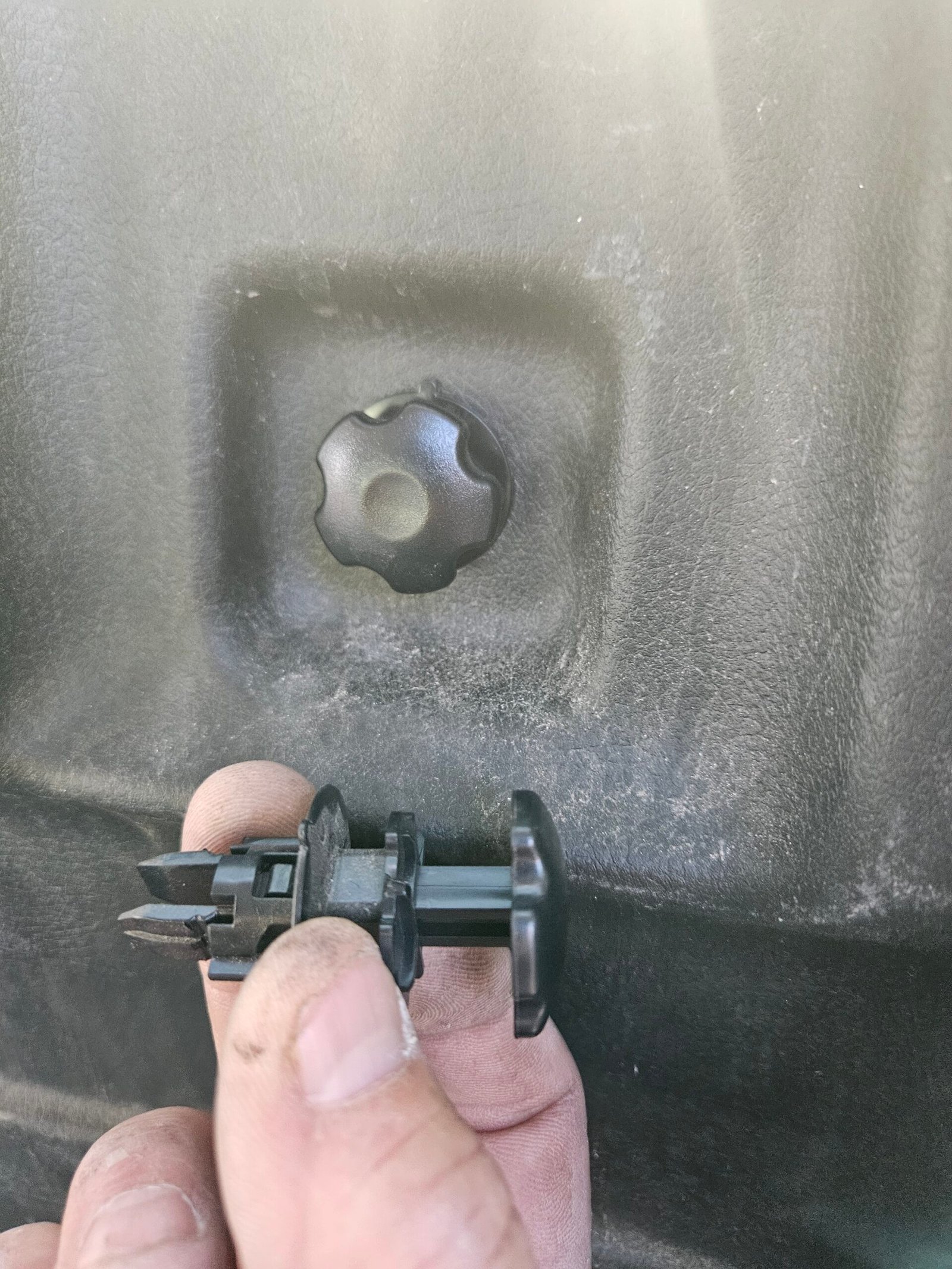

Rear Interior Panel Access
On this CrewMax Tundra, lowering the rear seatbacks provided access to the rear trim panel and the window mechanism behind it.
The photo shows the panel’s clip access points. Carefully releasing these attachment points helps protect the trim and mounting hardware during removal.
Removing the Rear Trim Panel
With the rear seatbacks lowered, the rear interior trim panel was removed to expose the metal access panel covering the power window mechanism and wiring.
Careful handling of the trim and its clips helps avoid broken attachment points and rattles when the panel is reinstalled.

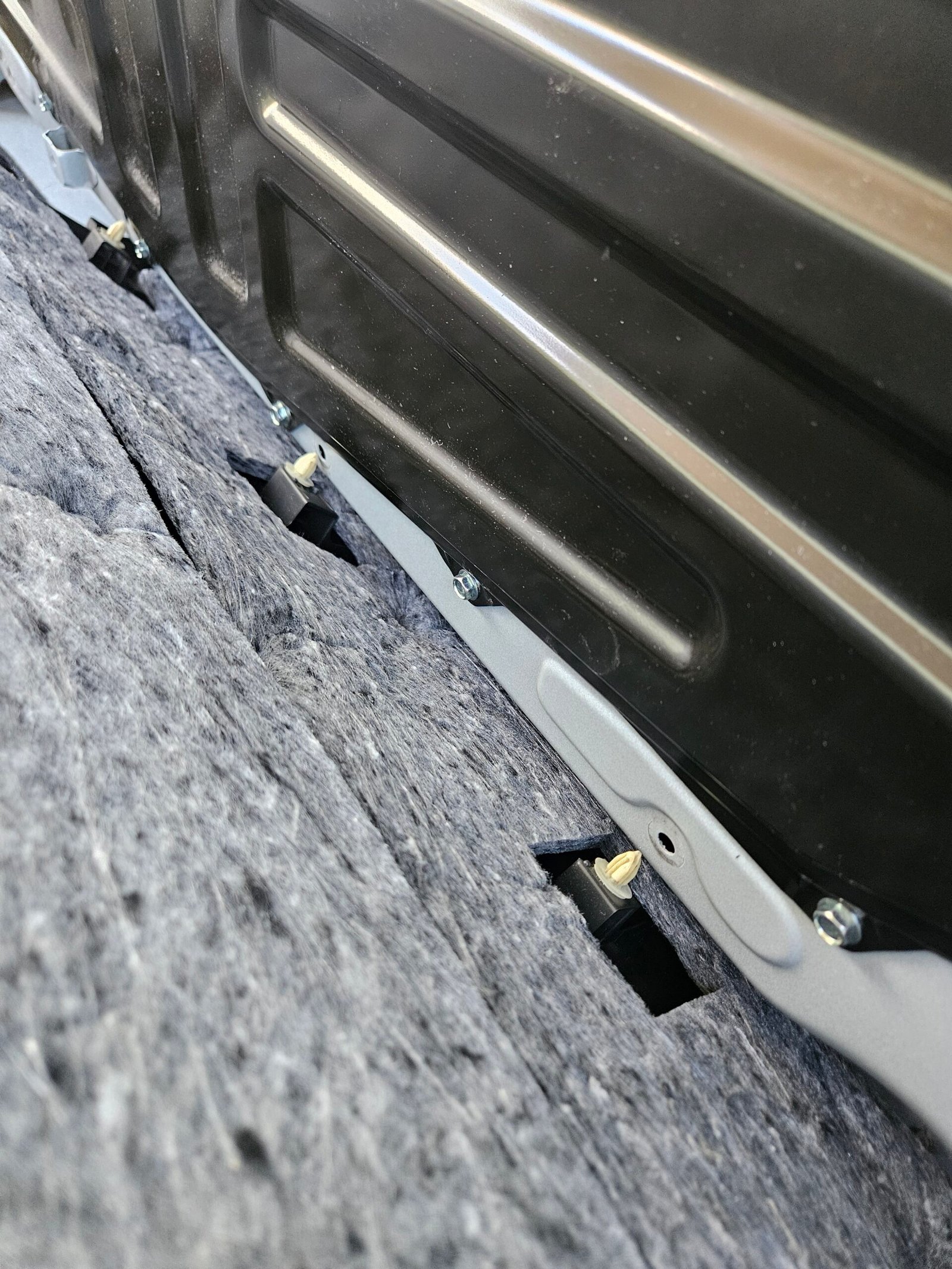

Metal Access Panel Fasteners and Supports

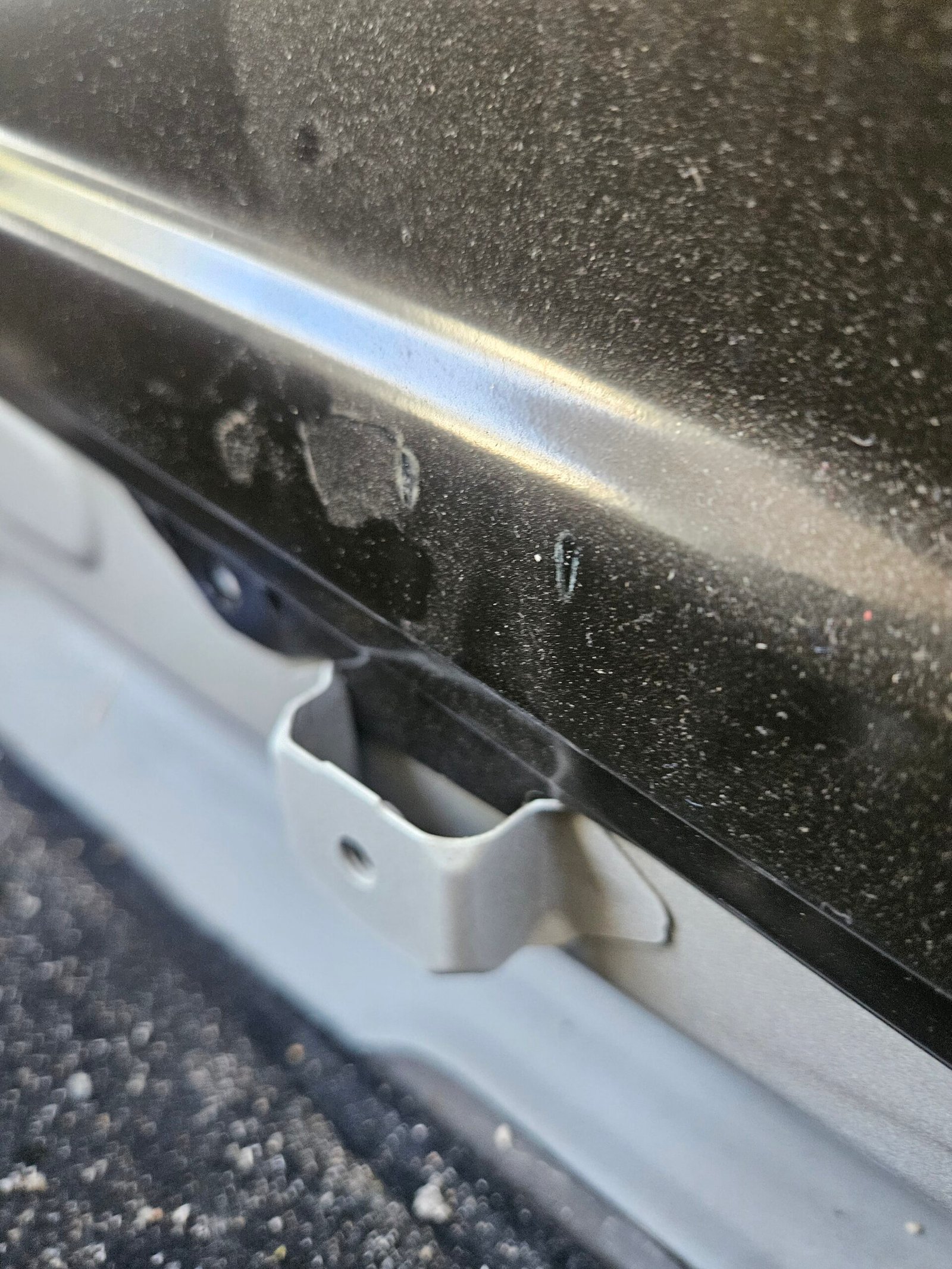

The metal access panel was secured with eleven bolts removed using a 10 mm socket. An upper-right clip and a lower-left locating tab also helped hold the panel in position.
During reassembly, the lower edge fits into the tab holder before the upper-right clip is secured. The following photos show these attachment points in more detail.

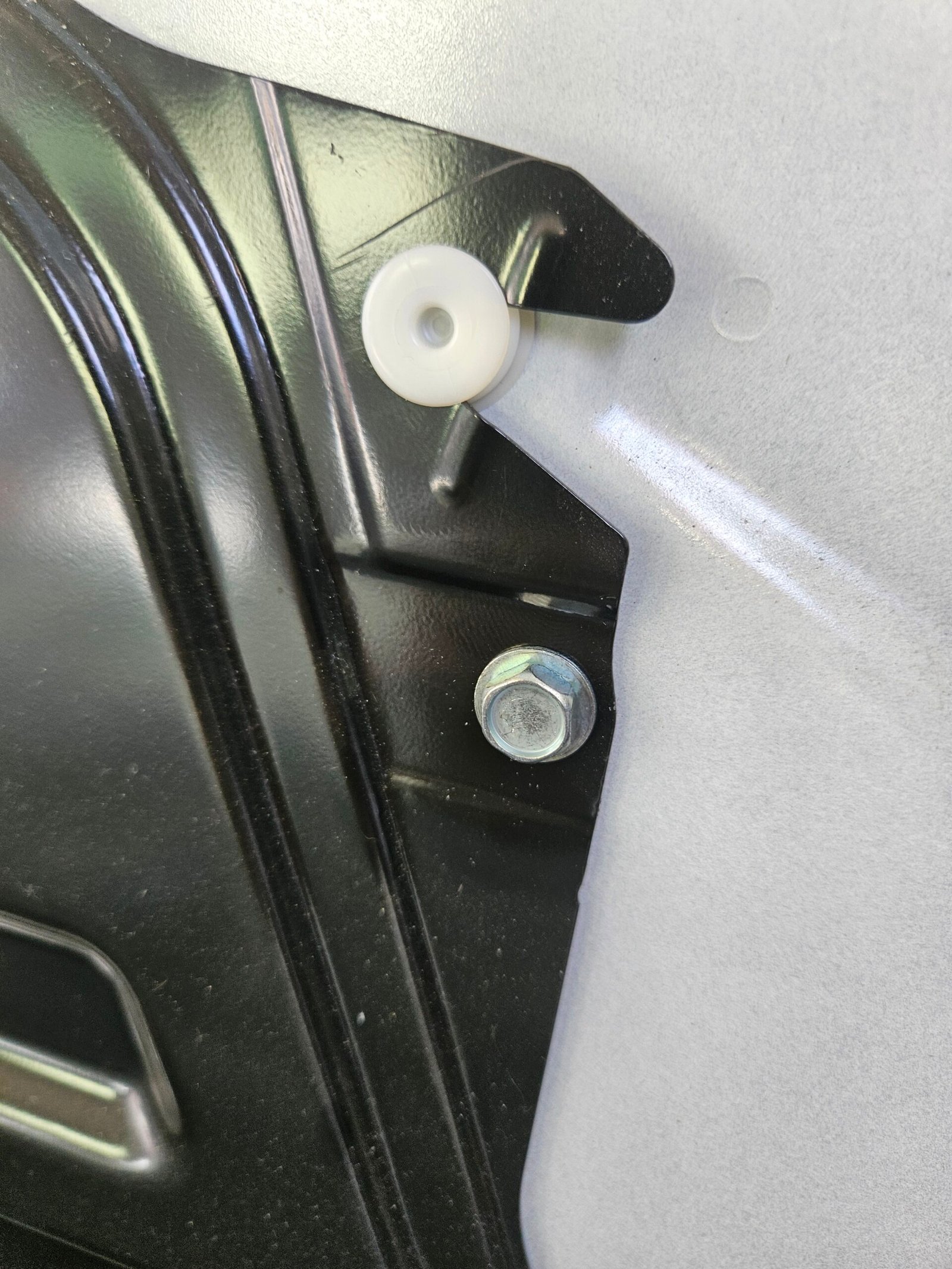

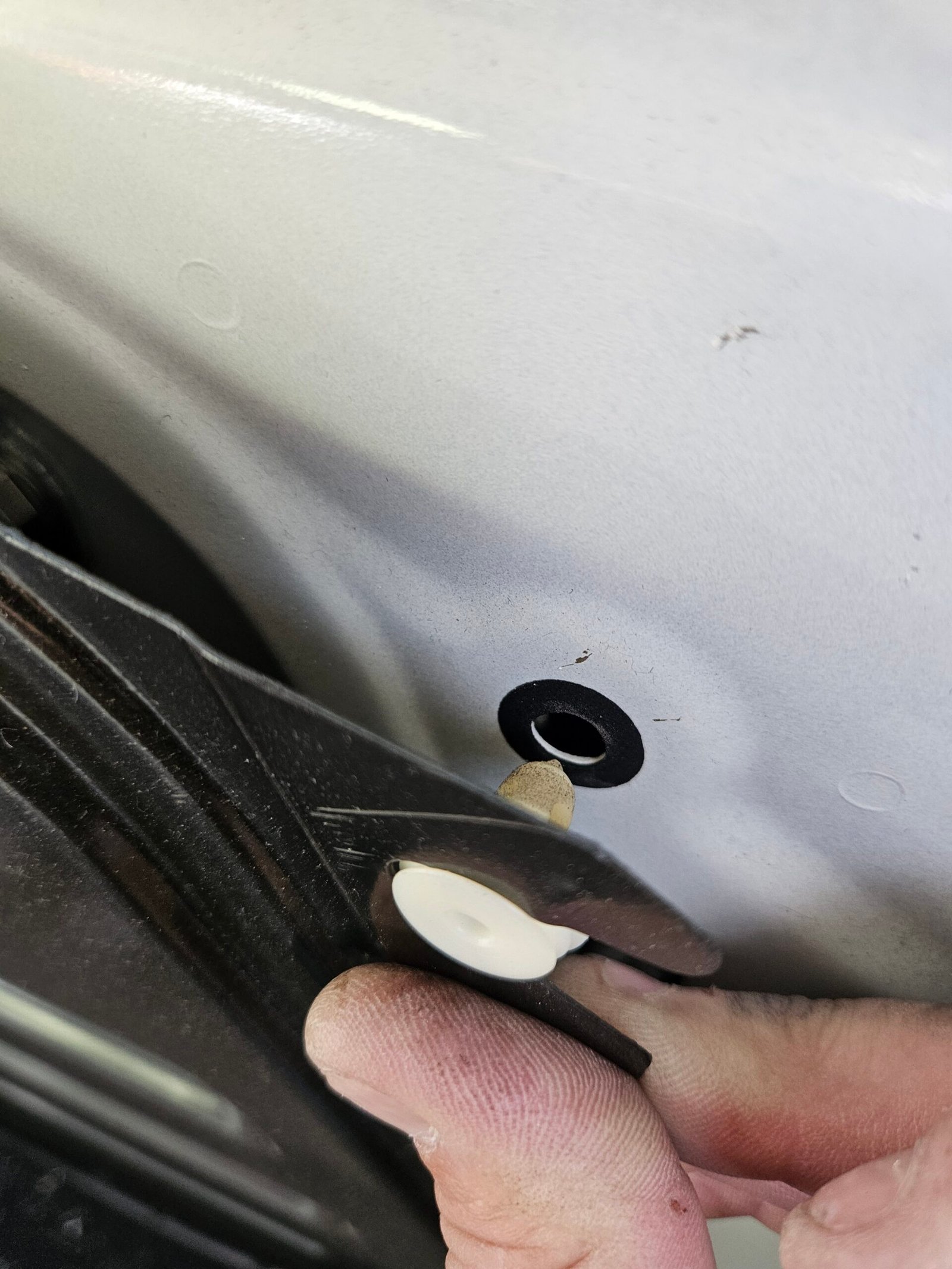

Releasing the Access Panel Clip
The retaining clip was released so the metal access panel could be moved away from the window mechanism. The first photo shows the clip’s location.
The second photo shows the clip beside one of the panel’s mounting bolts. Along with the lower locating tab, this clip helps position and support the panel while the fasteners are reinstalled.

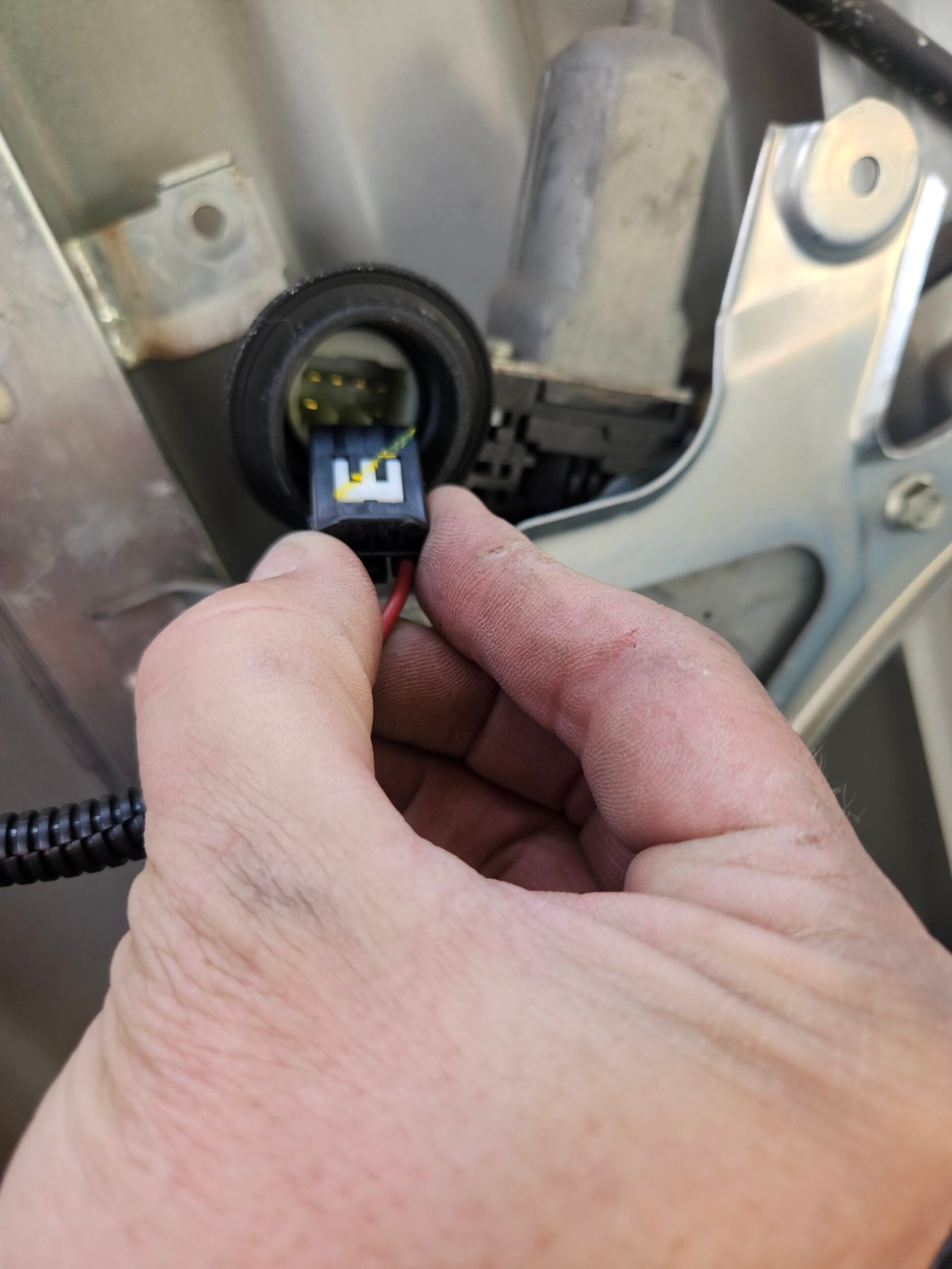

Disconnecting the Motor and Defroster Wiring
The power window motor connector was disconnected so the metal access panel could be moved clear of the work area.
The rear defroster connections were also detached from the damaged glass. Releasing the connector tabs carefully helps protect the wiring and terminals during removal.

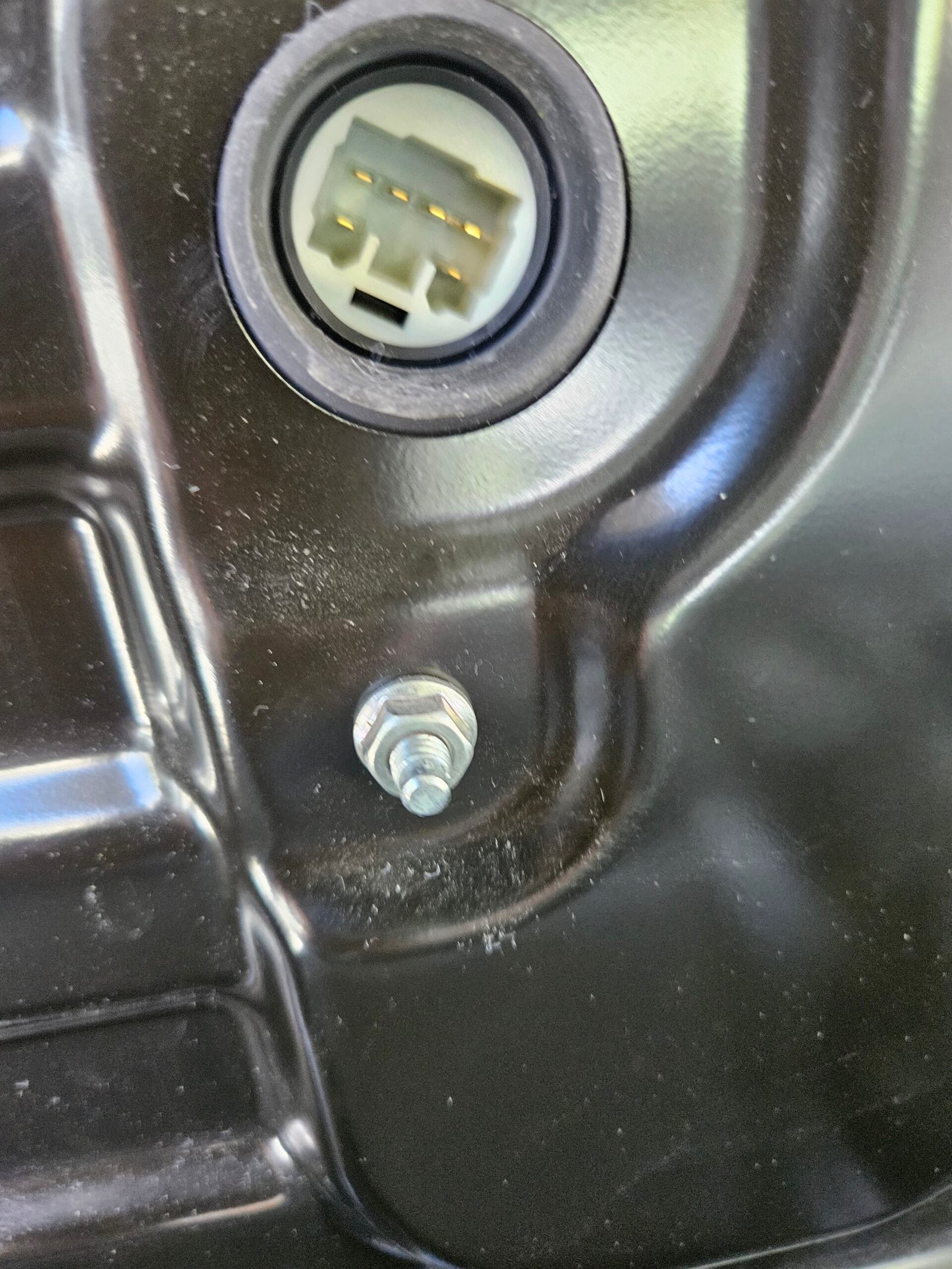

Removing the Final Access Panel Fastener
The photo shows the remaining nut securing the metal access panel. Once it was removed and the panel’s edges were carefully freed, the panel could be moved out of the way.
This provided access to the damaged glass and its mounting brackets.

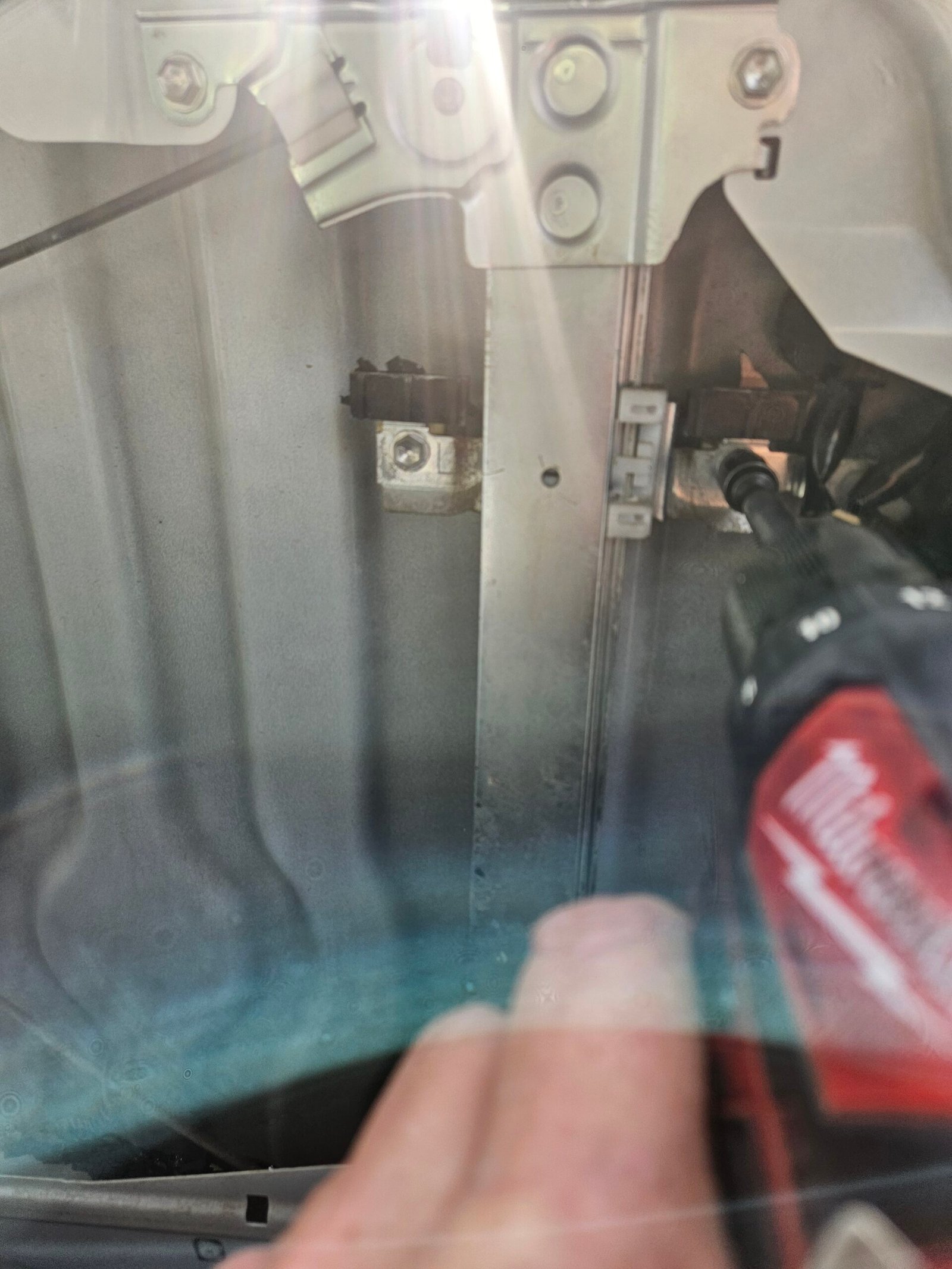

Removing the Damaged Glass and Mounting Brackets
The glass mounting bracket fasteners were removed using a 10 mm socket, allowing the damaged glass to be separated from the regulator.
With the remaining glass removed, the surrounding area was ready for cleanup before fitting the replacement rear window.

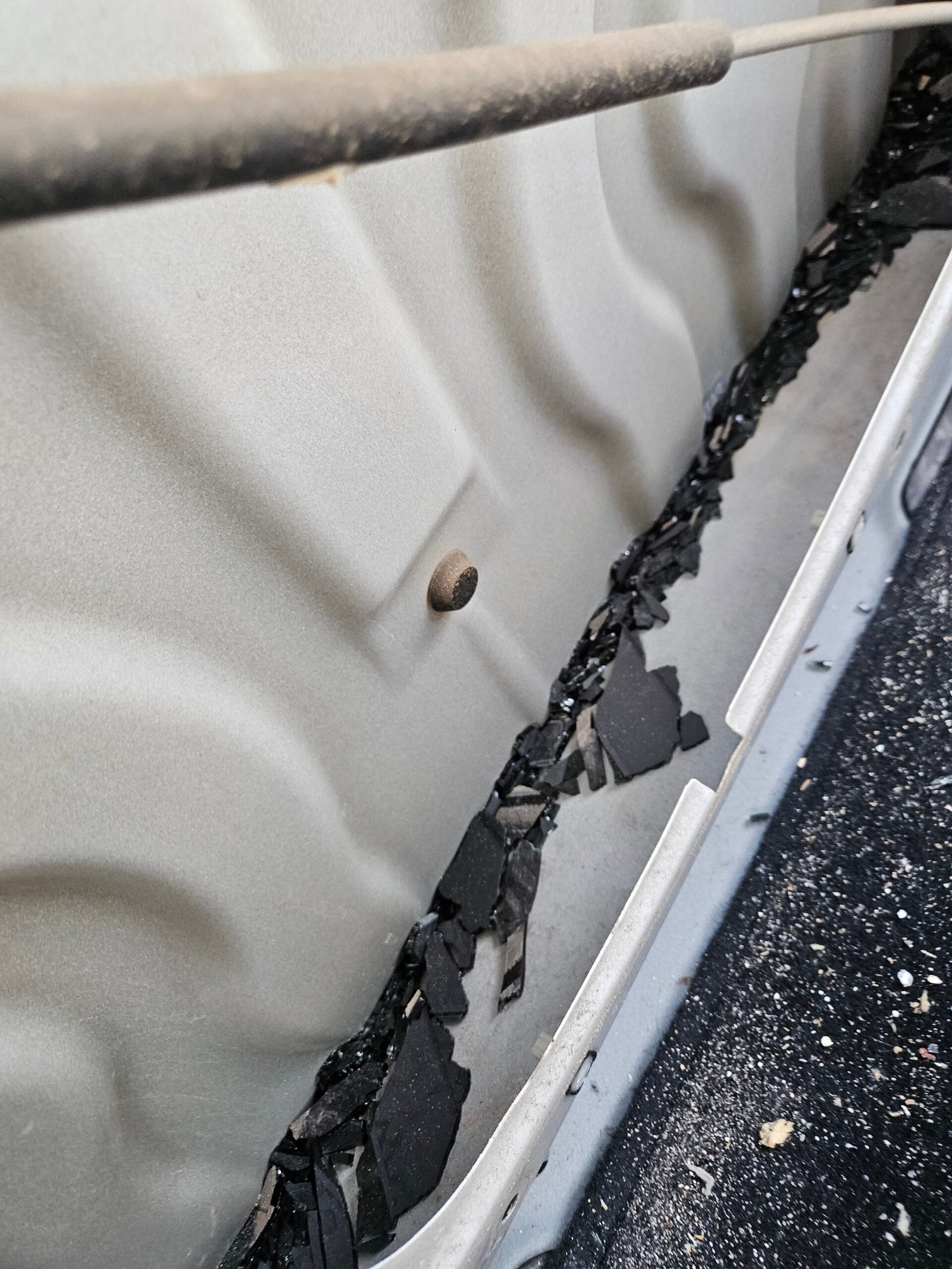

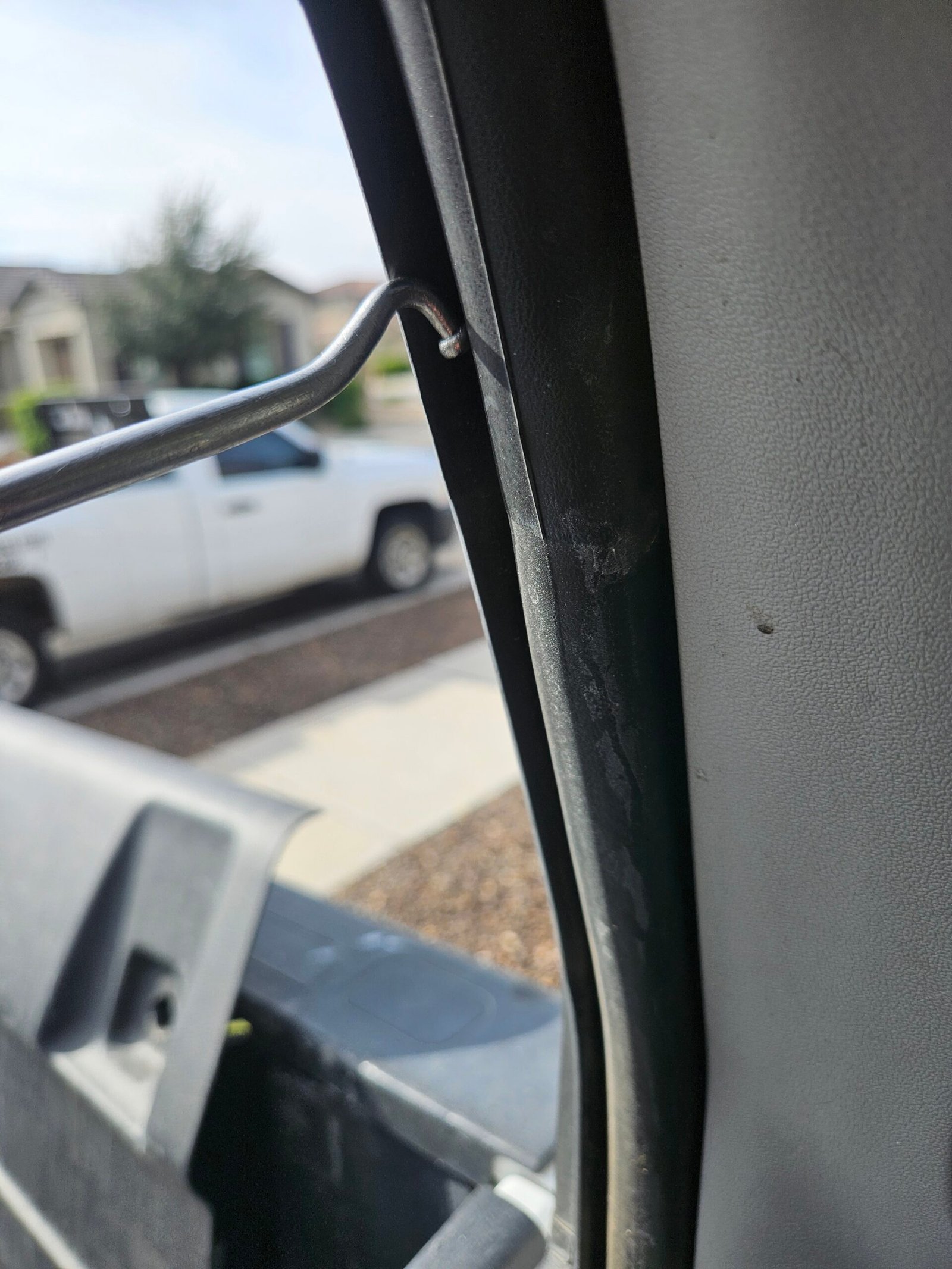

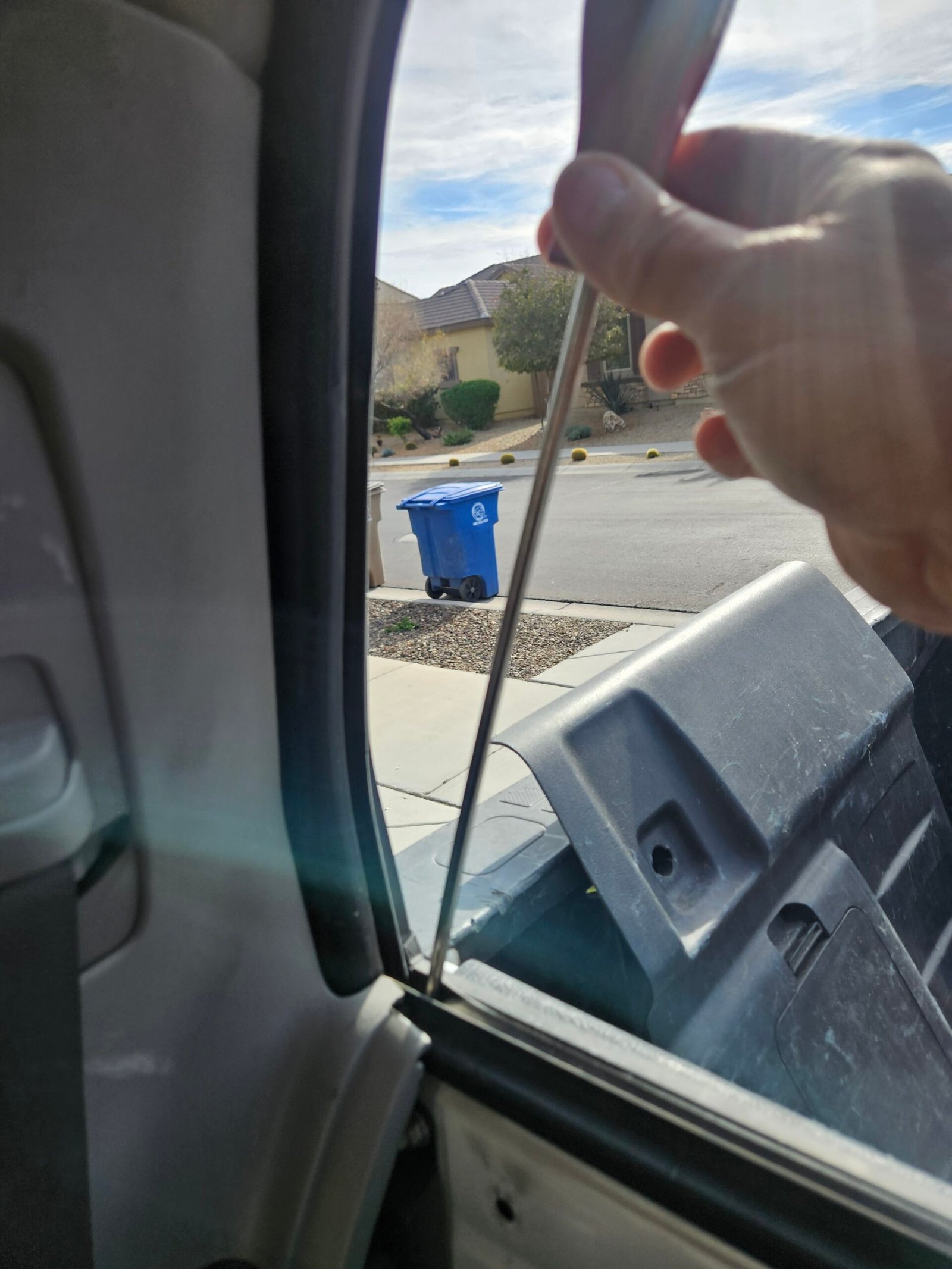

Clearing and Vacuuming Broken Glass
Glass fragments were removed from the accessible window channels, mechanism area, and surrounding interior before the replacement glass was installed.
The photos show the cleanup at several points around the opening. Clearing these areas helps keep loose fragments from interfering with the moving window.

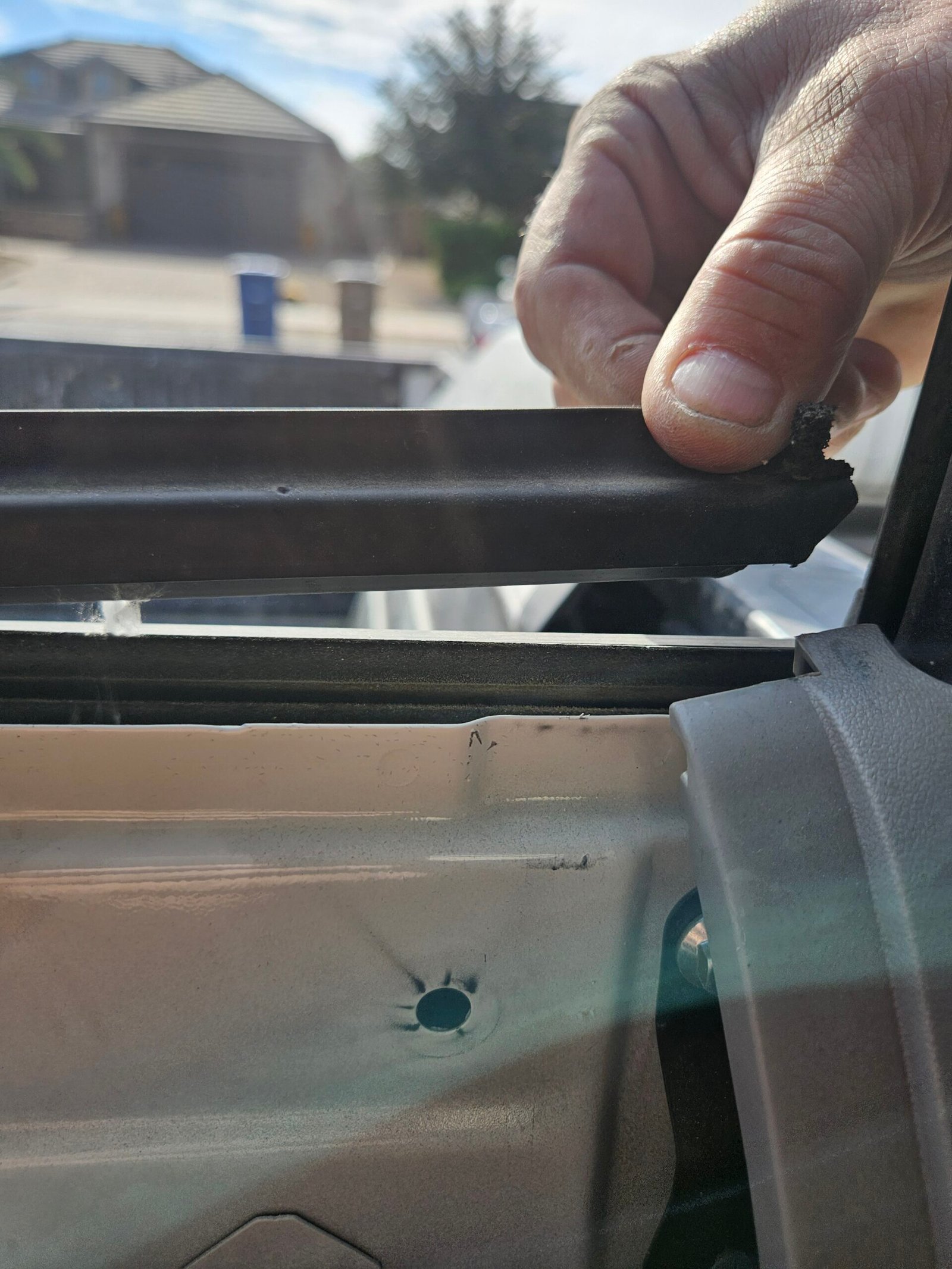

Refitting the Felt Protector and Positioning the Glass
The felt protector helps cushion the moving glass and reduce friction and noise. It was refitted as part of preparing the window mechanism for the replacement glass.
On this job, the new rear glass was introduced from outside the truck at an angle, then carefully lowered into position. The tight clearance required controlled movement to guide it into place.

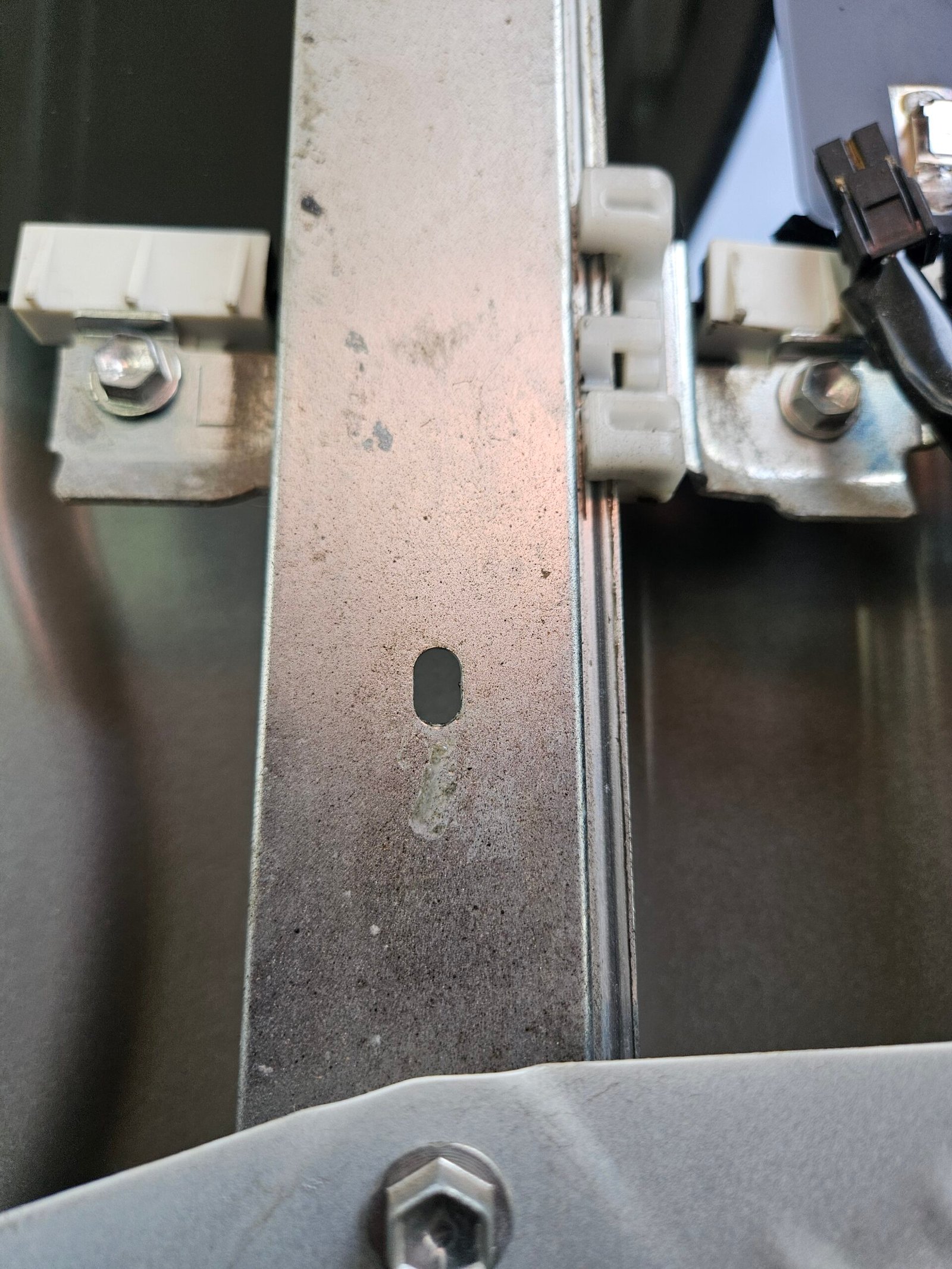

Aligning the Glass With the Regulator
The replacement glass brackets were positioned onto the regulator’s mounting points. The four fasteners, tightened using a 10 mm socket, were initially left loose enough to allow alignment adjustments.
The glass was then moved through its travel to check its position before the fasteners were fully tightened. Correct alignment helps the window move smoothly through its guides and seat properly when closed.
Testing the Power Sliding Rear Window
The replacement glass brackets were positioned onto the regulator’s mounting points. The four fasteners, tightened using a 10 mm socket, were initially left loose enough to allow alignment adjustments.
The glass was then moved through its travel to check its position before the fasteners were fully tightened. Correct alignment helps the window move smoothly through its guides and seat properly when closed.
More Than a Glass Swap
This replacement involved the glass, regulator, electrical connections, guides, and interior trim. Removing the broken glass was only part of the work—the replacement also needed to align correctly and move smoothly through its full travel.
Careful cleanup, secure mounting, and repeated operation checks helped confirm that the window was functioning properly before the truck was put back together.
Need a Toyota Tundra Rear Window Replaced?
1st Shot Auto Glass provides mobile back glass replacement in Mesa and the surrounding Phoenix metro service area.
Send your truck’s year, a photo of the damage, and whether it has a power sliding rear window. Your VIN can help identify the correct glass. We can check availability, provide a quote, and discuss insurance coverage before scheduling.
Toyota Tundra Rear-Window Replacement Questions
How much does a Toyota Tundra power sliding rear window replacement cost?
Pricing depends on the correct glass for your truck and whether the regulator or other components also need attention. Send your vehicle details and a photo of the damage for a quote.
Can you replace the glass if the regulator is broken?
Possibly. Sometimes the regulator positioning needs to be in certain places in order to access the bolts that attach the glass to the regulator, to clean glass properly, and to actually get the glass in place.
Replacing the glass alone won’t restore power window operation. A broken regulator also needs repair or replacement. We check the mechanism and glass mounting components to determine what’s needed before completing the job.
